Product Overview

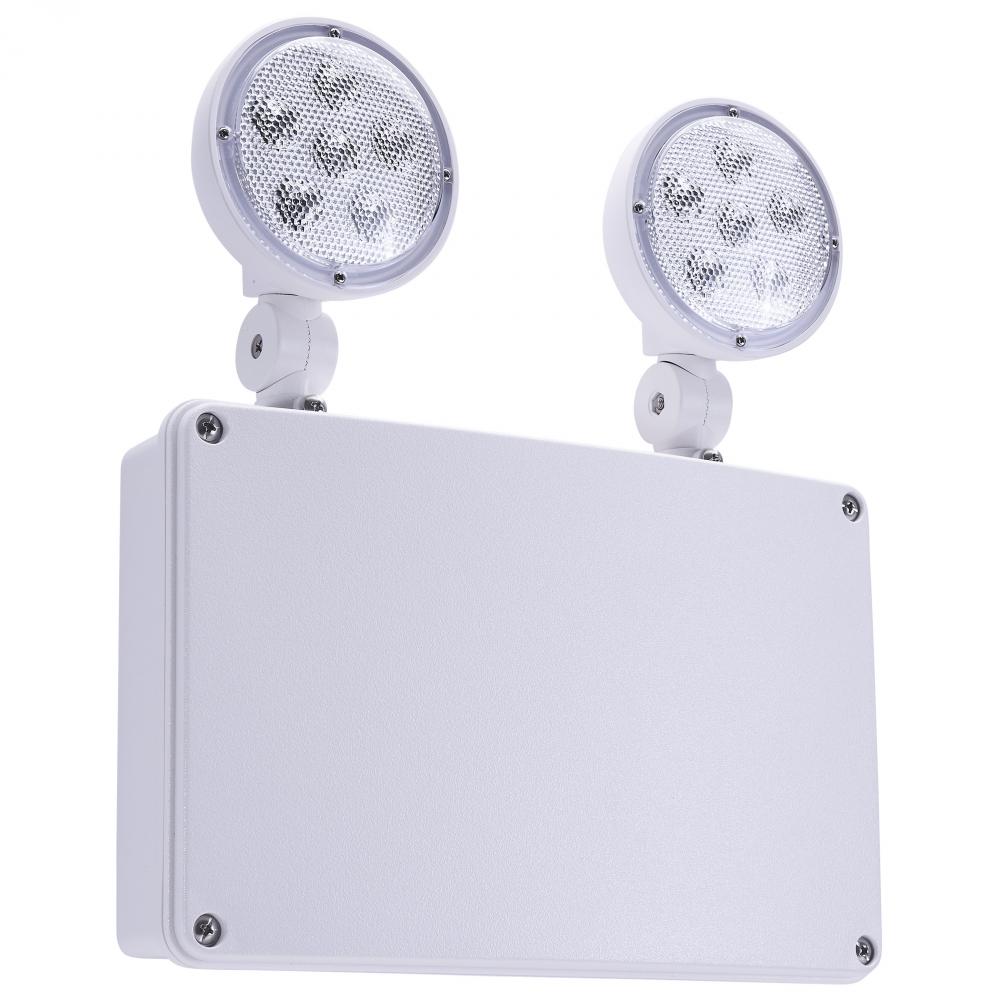

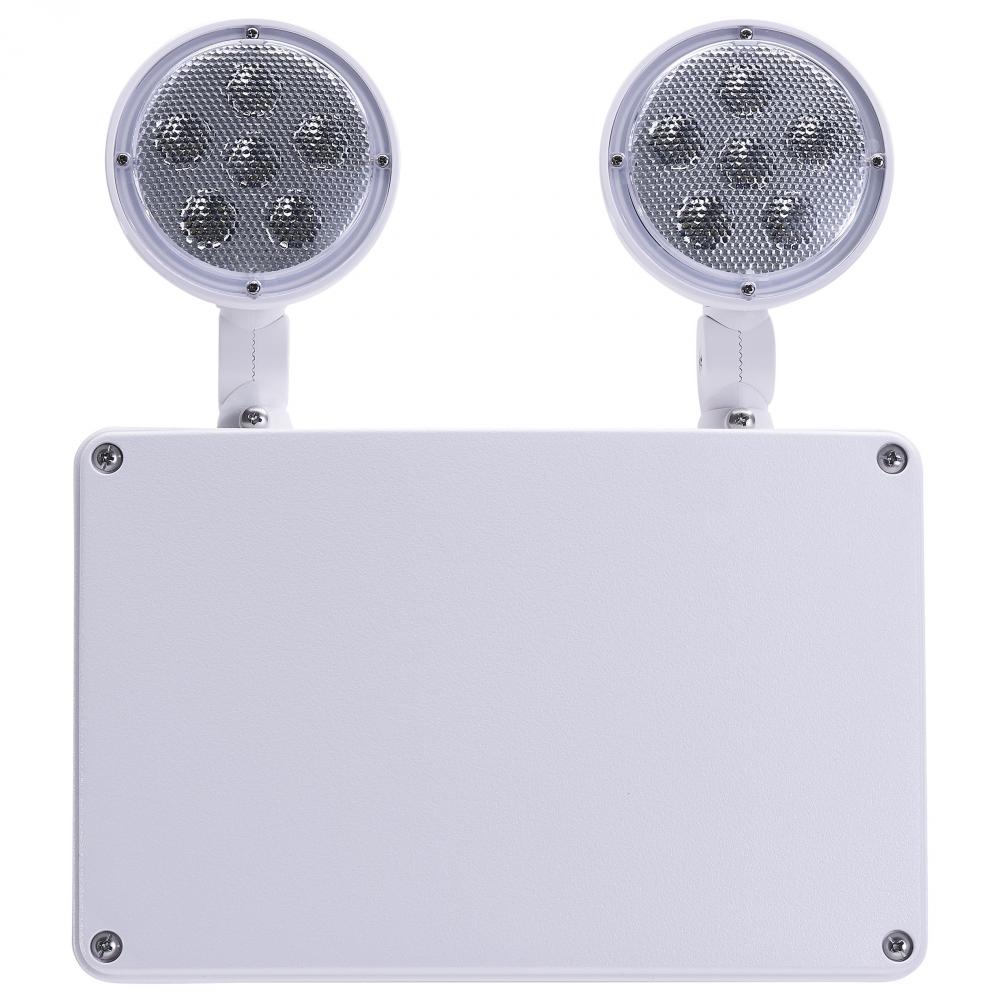

Emergency Light; 120-347V; 2HR Backup; Universal Mounting; Wet Location; Low Temperature

Standard Information

Option:

LED

Prop 65

Refinement Options

Category:

Lighting Products

Sub Category:

Emergency Lighting

Style:

Utility

Additional Info:

Low Temperature Model

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Natural Light

Dimmable:

Non-Dimmable

Each Height:

10.43

Each Length:

12.48

Each Width:

2.83

Lumens:

600L

Tariff Code:

9405.42.6000

Warranty:

2-Years

Amps:

0.029-0.010A

ANSI Base:

Integrated

Battery Chemistry:

Ni-Cad

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

Non-Compliant - Never Tested

CEC Terse:

Non-Compliant

CEC Web Text:

Non-Compliant

Country Of Origin:

China

CRI:

80+

Depth:

2.72

Each Cube:

0.2132

Each Quantity:

1

Efficacy:

171.43 LPW

FCC Compliant:

Yes

Feature 1:

Dual Light Heads

Feature 10:

>500 Life Cycles

Feature 2:

Integrated Battery Backup

Feature 3:

Interchangeable Pictograms

Feature 4:

Surface Mounted

Feature 5:

Wet Location Rated

Feature 6:

120-Minute Battery Run Time

Feature 7:

Complies with ICES-005 Class B

Feature 8:

CSA, OSHA, and NFPA Compliant

Feature 9:

Push-to-Test Button

Finish Family:

White

Has Emergency Battery:

Yes

Indoor Outdoor:

Indoor and Outdoor

IP Rating:

IP65

JA8 Compliant:

No

Lens Finish:

Clear

Lens Material:

Polycarbonate (PC)

Long Description:

Keep your building safe and secure with SATCO NUVO 67-581 LED Emergency Lights. Two adjustable light heads provide ample illumination in the event of an emergency for up to two hours with the integrated battery backup. All models are wet location rated for

Material:

Thermoplastic

Mounting Procedure:

Universal

Operating Frequency:

50/60Hz

Operating Temp:

-25C (-13F) to +50C (+122F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.45

Quantity In Pack:

1

R9 Value:

15

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

Keep your building safe and secure with SATCO NUVO LED Emergency Lights. Two adjustable light heads provide ample illumination in the event of an emergency for up to two hours with the integrated battery backup. All models are wet location rated for use in

Safety Listing:

CSAus

SDS class:

LED_Fixture

Short Description:

EM LIGHT-CAN-WET LT

Sloped Ceiling Compatible:

No

Specification Notes:

Ni-Cad Battery; 120 minute discharge time; 24 Hour Recharge Time

Temperature (CCT):

5000K

Title 20 Compliant:

No

Title 24 Compliant:

No

Total Harmonic Distortion:

120%-140%

Wattage Selectable:

No

Weight Lb.:

2.2

Manufacturer Info

Manufactured By:

Satco Products Inc.
